SpiralVeyor SVm-Series

Industries

Solutions

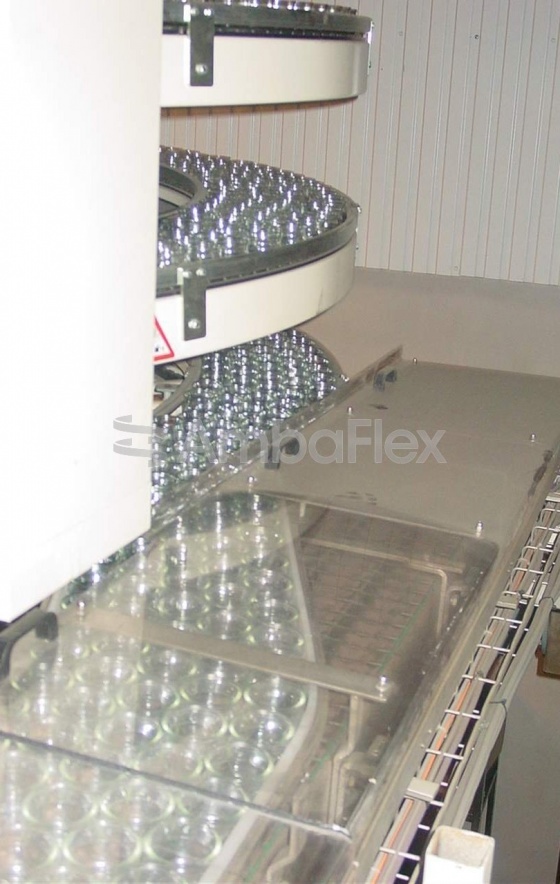

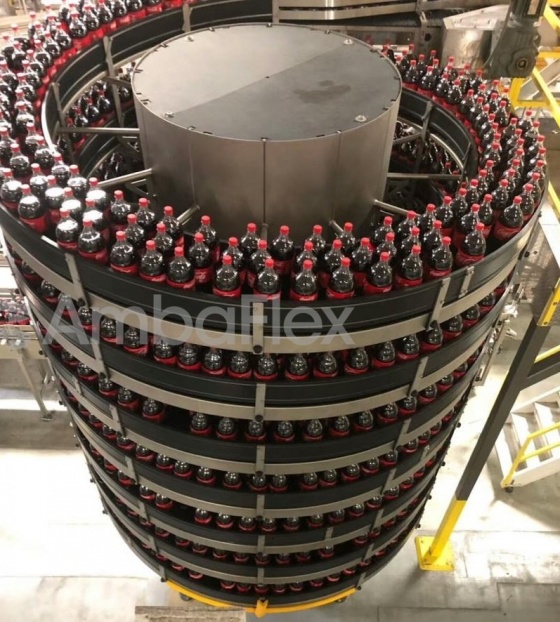

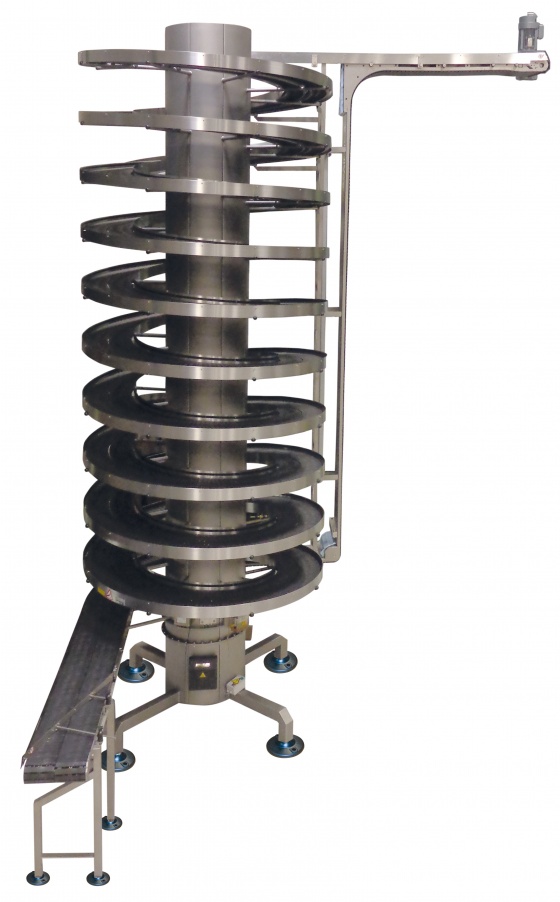

The SpiralVeyor SVm is designed to convey a mass flow of individual bottles and cans. Its compact, robust and simple design makes it a revolutionary solution.

The AmbaFlex patented belt with lateral roller guides permits multiple windings. This innovative solution allows a much more effective layout for filling lines. The SpiralVeyor SVm saves valuable floor space compared to traditional straight inclined chain conveyors. It also compares very favorably to side grip elevators. It eliminates the need to combine lines, enabling a compact line design. Thousands of SpiralVeyor’s are currently operational world-wide.

Suitable for goods:

Single bottles, Cans, Jars and Tins

Details

  • Belt width range: 200-500 mm| 8-20"
  • Multi track belt: 1-5 parallel tracks
  • Load range: up to 100 kg/m | 67 lb/ft
  • Speed range: up to 60 m/min | 200 fpm
  • Elevation: virtually unlimited, commonly per drive system 6 m | 20 ft
  • Belt length: up to per drive system 60 m | 200 ft
SpiralVeyor SVm Series
Belt Width Footprint
SVm 200-1300 200 mm / 8" 1540 mm / 5' - 1"
SVm 200-2000 200 mm / 8" 2240 mm / 7' - 4"
SVm 300-1200 300 mm / 12" 1540 mm / 5' - 1"
SVm 300-1900 300 mm / 12" 2240 mm / 7' - 4"
SVm 300-2100 300 mm / 12" 2440 mm / 8'
SVm 300-2600 300 mm / 12" 2940 mm / 9' - 8"
SVm 300-3100 300 mm / 12" 3440 mm / 11' - 3"
SVm 400-1800 400 mm / 16" 2240 mm / 7' - 4"
SVm 400-2000 400 mm / 16" 2440 mm / 8'
SVm 500-1700 500 mm / 20" 2240 mm / 7' - 4"
SVm 500-1900 500 mm / 20" 2440 mm / 8'
SVm 500-2400 500 mm / 20" 2940 mm / 9' - 8"
SVm 500-2900 500 mm / 20" 3440 mm / 11' - 3"

Material

  • Dry use
  • Wipe down (R)
  • Wash down economic (CR)
  • Wash down total (RS)

AmbaFlex as inventor of the spiral conveyor and with over 32,000 machines in the market is by far the most experienced party. These experiences are boiled down into market and application-specific PreDefined Configurations that exactly suit to our customers' needs.

For further details, specifications and prices please feel free to request more information here.
